WEEN

Art. 3422.24

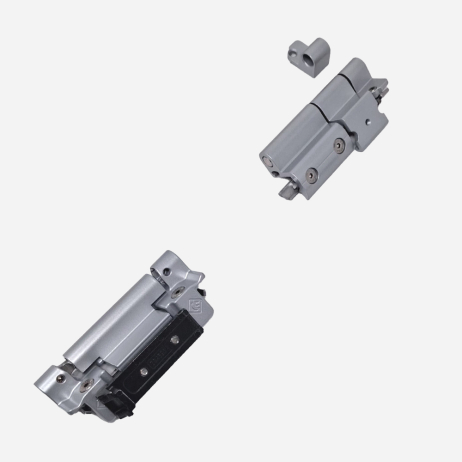

Hinge Kit WEEN

Extruded aluminium and zamak hinges, counter plates in zamak and stainless steel, stainless steel screws, pins and set screws. Tilt and turn sash hinge kit. Maximum capacity 160kg. In combination with the arms art. 3402.2*.

  • N. pieces in the packaging: 5 pz
  • Packaging weight: 2.54 Kg
  • Packing dimensions: 11.00 cm x 21.00 cm x 31.00 cm
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A03 - Camera Europea Telaio 10/14,
    A05 - Camera NC
  • Finishes: NATURALE, RAL 1, RAL 2, K FINISH, TEK
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
