WEEN

Art. 3422F.1

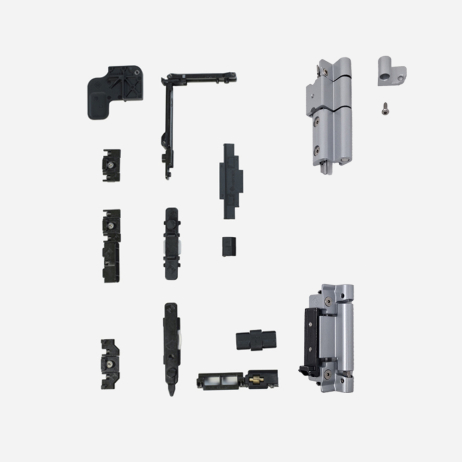

Ween 160 kg CE tilt and turn sash

Frame side hinges, corner drive, zamak terminals and retainers, extruded aluminium hinges on sash side, stainless steel plates and screws. Cremone bolt body and handle in die-cast aluminium; rack and pinion, pinion and body cover in galvanized zamak; guide rail and friction washer in delrin; screws in galvanized steel; locking screws of the cremone bolt on stainless steel profile. Basic kit with anti-false manoeuvre on the cremone bolt, with comfort cremone bolt. Maximum capacity 160 Kg. In combination with the art. 3402.2X arms.

  • N. pieces in the packaging: 5 pz
  • Packaging weight: 4.50 Kg
  • Packing dimensions: 5.00 cm x 15.00 cm x 25.00 cm
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A03 - Camera Europea Telaio 10/14,
    A05 - Camera NC
  • Finishes: NATURALE, RAL 1, RAL 2, K FINISH, TEK
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
