Levers and pins in stainless steel, support and adjustment body in zamak. With long arm for tilt and turn. For right opening (doors from 601 to 1500 mm). Maximum load 130 kg - 150 kg in combination with 3310.51 - 180 kg in combination with 3310.50+1211 (with limited opening 90°).
Frame and sash side hinge in extruded aluminium, zamak plates, nylon bushings, screws, setscrew and pin in stainless steel. Maximum load 200 kg for casement opening.
Handling and tips made of zamak; delrin offset devices; stainless steel screws and cams. Handling body plus top and lower terminal.
Stainless steel lever, pin and grub screws; limiting body and block in zamak; nylon bumpers. Maximum load 250 kg, varies depending on the frame’s size and opening angle. Lever 240 mm.
Stainless steel lever, pin and grub screws; limiting body and block in zamak; nylon bumpers. Maximum load 250 kg, varies depending on the frame’s size and opening angle. Lever 240 mm

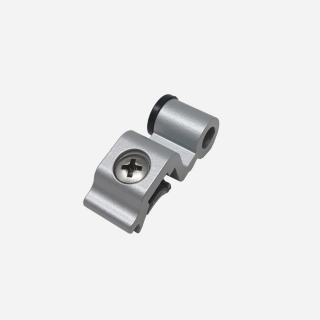

Wing in extruded aluminum, plug in nylon, plate and fixing screw M5 TSC CR in stainless steel. Can be combined with hinge 9227.*
