MANUAL PUNCHING MACHINE FOR CUTTING POLYAMIDE CONNECTING RODS

immagine MANUAL PUNCHING MACHINE FOR CUTTING POLYAMIDE CONNECTING RODS
DISCOVER NOW NEW




MANUAL PUNCHING

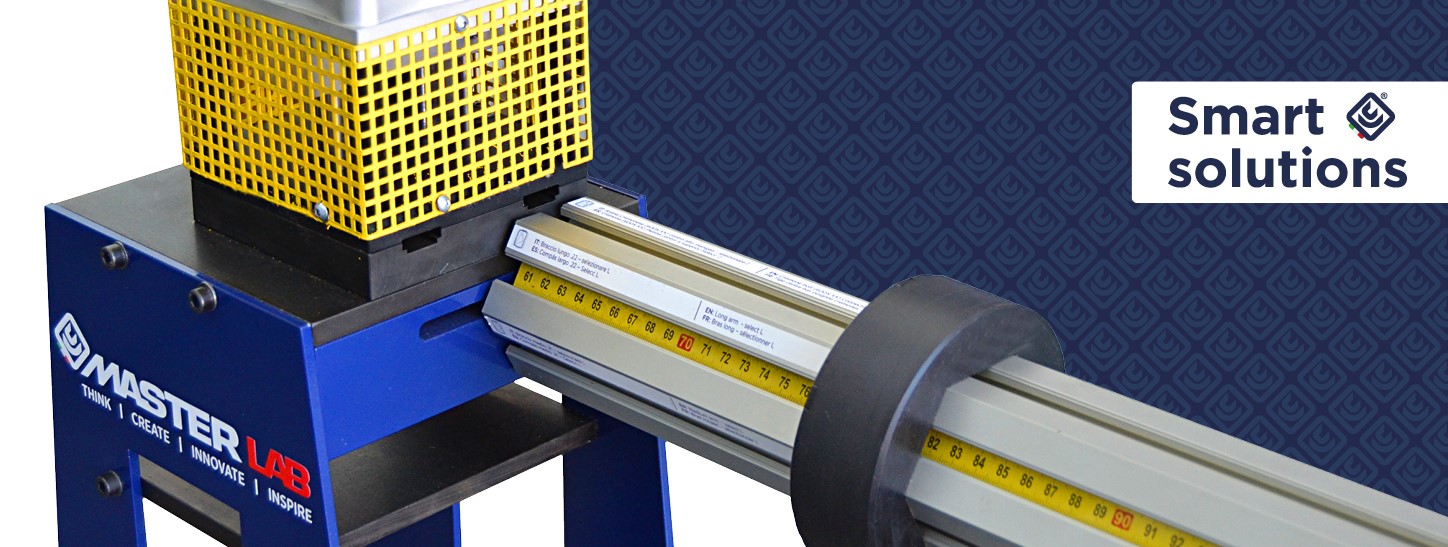

MANUAL PUNCHING MACHINE FOR CUTTING POLYAMIDE CONNECTING RODS

The new manual punching machine for cutting polyamide rods allows all the operations required to prepare connecting rods for  Master tilt and turn systems in simply and intuitively way. In fact, the innovative 6-position metric rod makes it possible to cut the T&T rods in a simplified manner only using: sash width / sash height / handle position. The machine works indifferently on the CE or R40 connecting rods and is compatible with all Master tilt and turn systems thanks to the dedicated metric roads for:



  • WEEN CE Program (Art. 2015.2),
  • WEEN R40 Program (Art. 2015.3),
  • 2.0 T&T (Art . 2015.4).

Features:

  • Innovative 6-position metric rod
  • Roll holder compatible with Master connecting rods CE and R40 (2010.1/2010.2)
  • Cutting polyamide rods for T&T handle version with one-way movement and for concealed hinges T&T version (using special templates)
  • Universal punch system for all the solutions
  • Dedicated metric roads for: WEEN CE Program (Art. 2015.2), WEEN R40 Program (Art. 2015.3), 2.0 T&T (Art . 2015.4).



Kind of making:

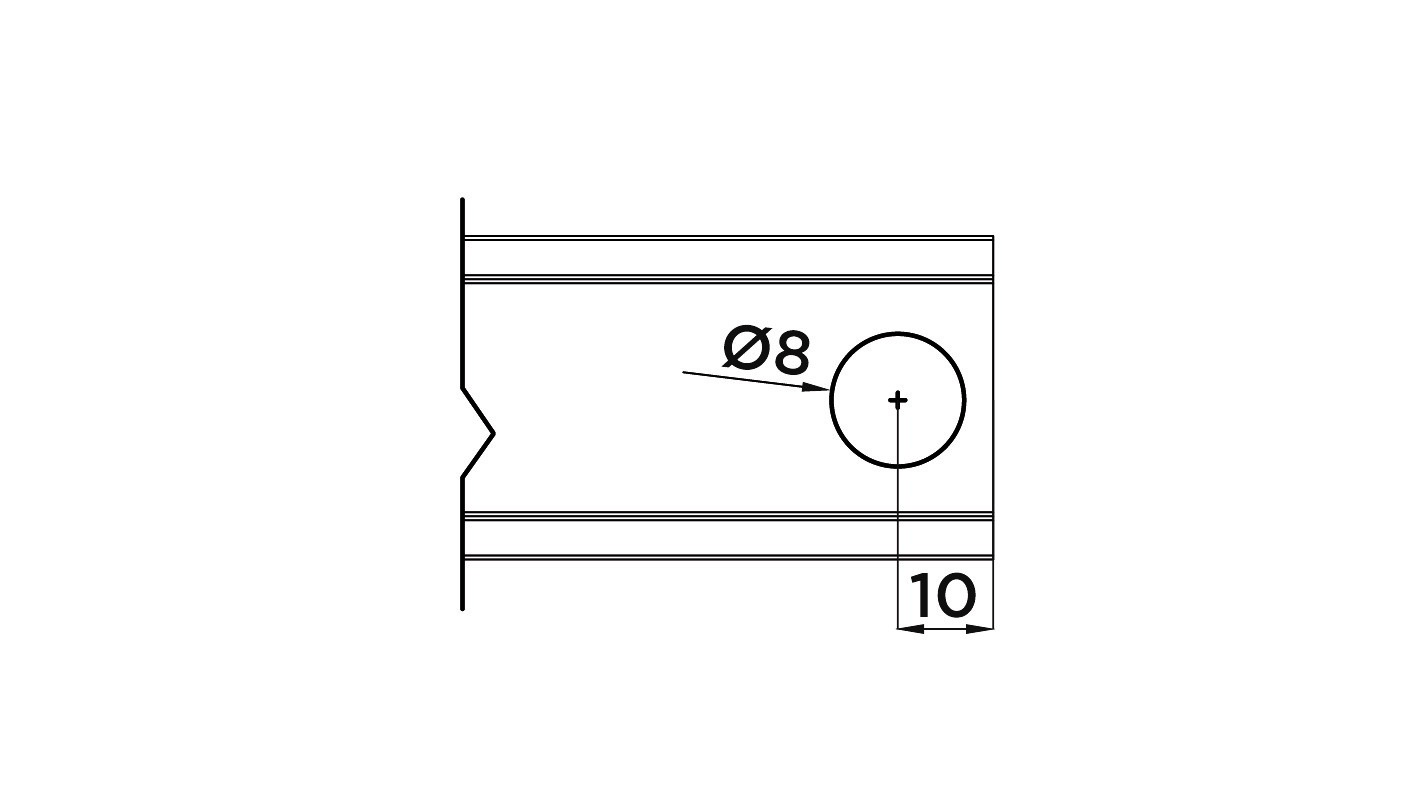

  • Hole
  • Hole & Cut
  • 3 Hole & Cut



Download brochure

Go to Catalogue
