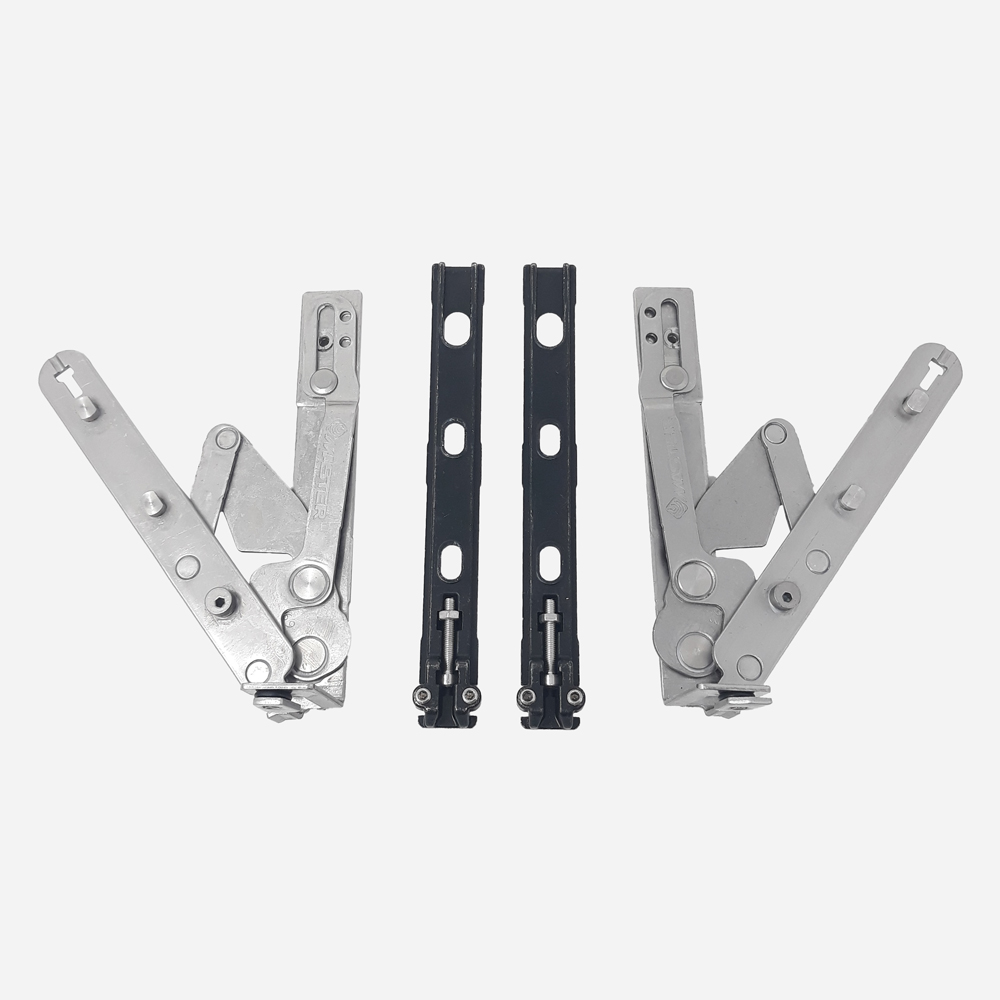

WEEN HIDE 180

Art. 3306.70

Adjustable concealed hinges for transom opening

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak Transom opening hinge kit. Maximum capacity: 100 Kg. Adaptable to coplanar profiles up to a 12 mm step

  • N. pieces in the packaging: 5 cp
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A05 - Camera NC,
    A20 - Camera Europea complanare Telaio 14/18 - gradino 7,
    A21 - Camera Europea complanare Telaio 14/18 - gradino 8,
    A22 - Camera Europea complanare Telaio 14/18 - gradino 9
  • Finishes: NATURALE
Type of opening:
  • Vasistas
DOWNLOAD AREA
  • product details
  • Technical installation diagram
