Frame and sash side hinge in extruded aluminium, zamak plates, nylon bushings, screws, setscrew and pin in stainless steel. Maximum load 200 kg for casement opening.
made of zamak. Cylinder cover for internal doors
Galvanized steel screws. In combination with movement art. 3626.2. backset 30 mm.
Galvanized steel screws. In combination with movement art. 3626.2. backset 35 mm.
Flaps in die-cast aluminium; Screw M6 with protective coating Dacromet 320 and washer in galvanized steel, buttons in zamak, springs in hardened steel. 19,3 x 9,2 mm, with Ø 7,5 mm peg

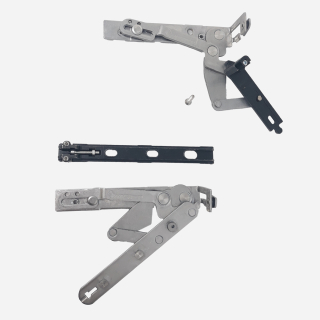

Levers and pins in stainless steel, support and adjustment body in zamak. With short arm for tilt before turn. For right opening (sashes from 671 to 1700 mm). Maximum load 130 kg - 150 kg in combination with 3310.51 - 180 kg in combination with 3310.50+1211 (with limited opening 90°).
Lever and rods in stainless steel, support and adjustment body in zamak. Transom opening hinge kit. Maximum capacity: 130 Kg

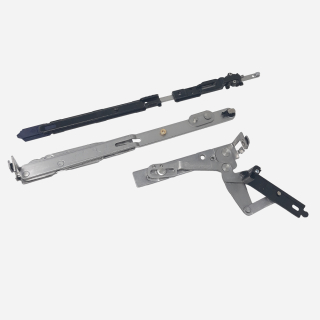

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Long arm for tilt before turn. For Right opening (sashes from 671 to 1700 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step
Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Long arm for tilt before turn. For Left opening (sashes from 671 to 1700 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step
Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Bottom hinge for tilt&turn and casement sash. For Left opening. Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step
Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Short arm for tilt before turn. For Left opening (sashes from 471 to 670 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step
Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Short arm for tilt before turn. For Right opening (sashes from 471 to 670 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step
