WEEN HIDE 180

Art. 3306.21S

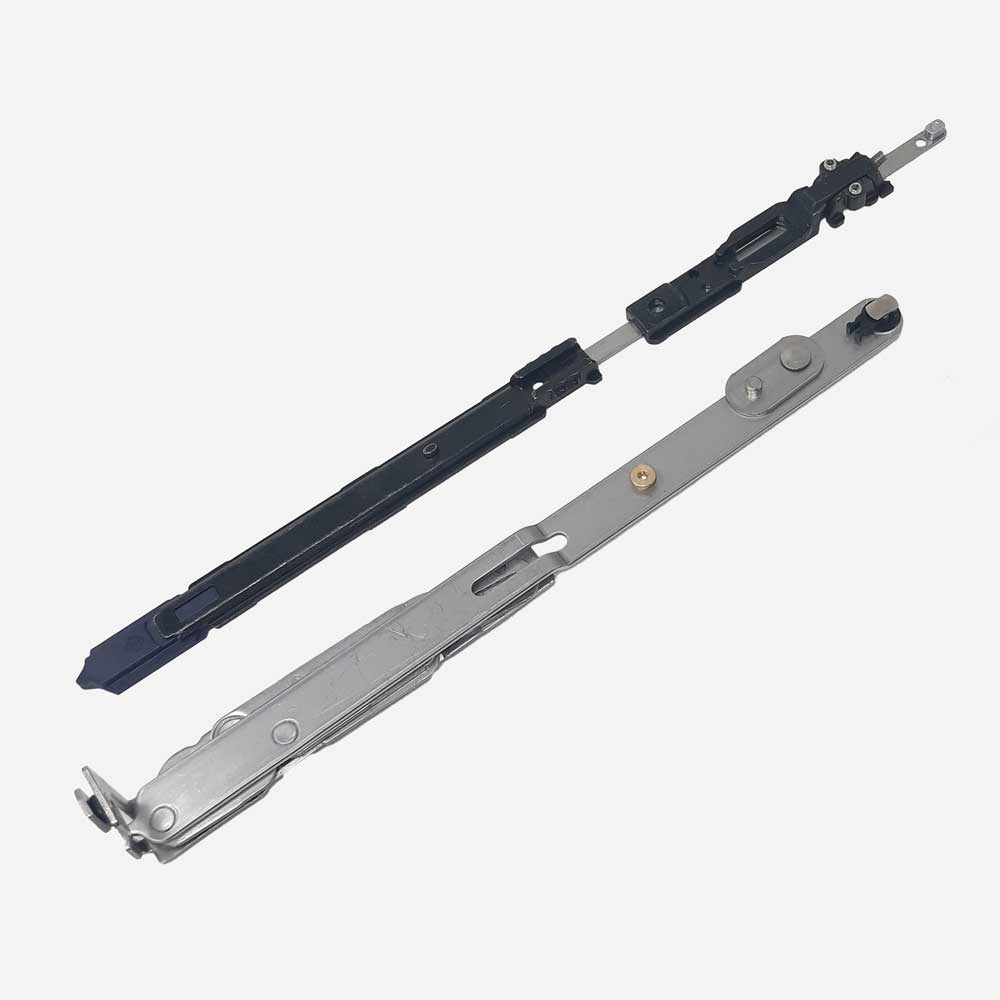

Hinges and concealed top arm

Levers, pins, cams, and frame angle support in stainless steel, adjustment body in zamak. Long arm for tilt&turn sash. For Left opening (sashes from 671 to 1700 mm). Maximum capacity: 100 Kg - 130 Kg in combination with 3310.51. Adaptable to coplanar profiles up to a 12 mm step

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A01 - Camera Europea Telaio 14/18,
    A05 - Camera NC,
    A20 - Camera Europea complanare Telaio 14/18 - gradino 7,
    A21 - Camera Europea complanare Telaio 14/18 - gradino 8,
    A22 - Camera Europea complanare Telaio 14/18 - gradino 9
  • Finishes: NATURALE
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
