WEEN HIDE 180

Art. 3303A.20S

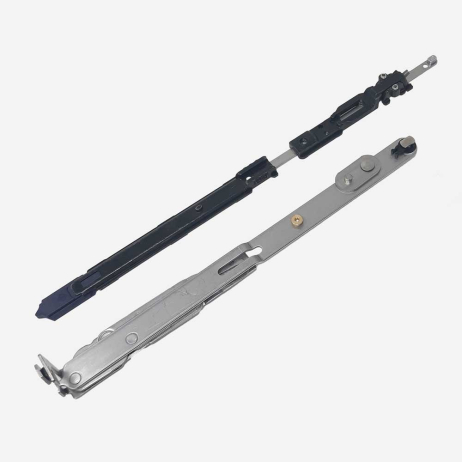

Hinges and concealed top arm

Lever and rods in stainless steel, support and adjustment body in zamak. Bottom hinge for tilt&turn and casement sash. For LH-side opening. Maximum load 130 kg - 150 kg in combination with 3310.51 - 180 kg in combination with 3310.50+1211 (with limited opening 90°).

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A03 - Camera Europea Telaio 10/14
  • Finishes: NATURALE
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
