WEEN HIDE 180

Art. 3303AL.10S

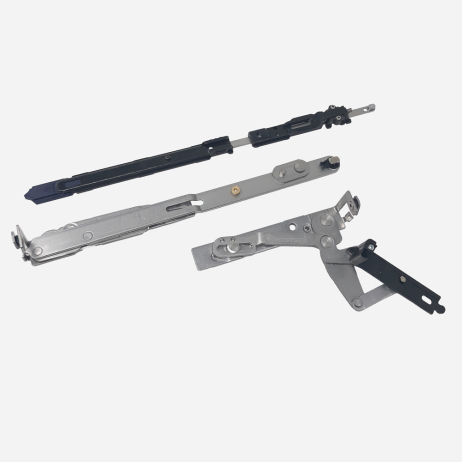

Lower hinge kit and concealed upper arm

Levers and pins in stainless steel, support and adjustment body in zamak. With short arm for tilt before turn. For left opening (sashes from 470 to 670 mm). Maximum load 130 kg - 150 kg in combination with 3310.51 - 180 kg in combination with 3310.50+1211 (with limited opening 90°).

  • N. pieces in the packaging: 5 pz
  • Applicability:
    A03 - Camera Europea Telaio 10/14
  • Finishes: NATURALE
Type of opening:
  • Anta ribalta singola
  • Anta ribalta doppia
