THE INVISIBLE SOLUTION BUILT TO LAST
The tilt-and-turn system with concealed hinges evolves.

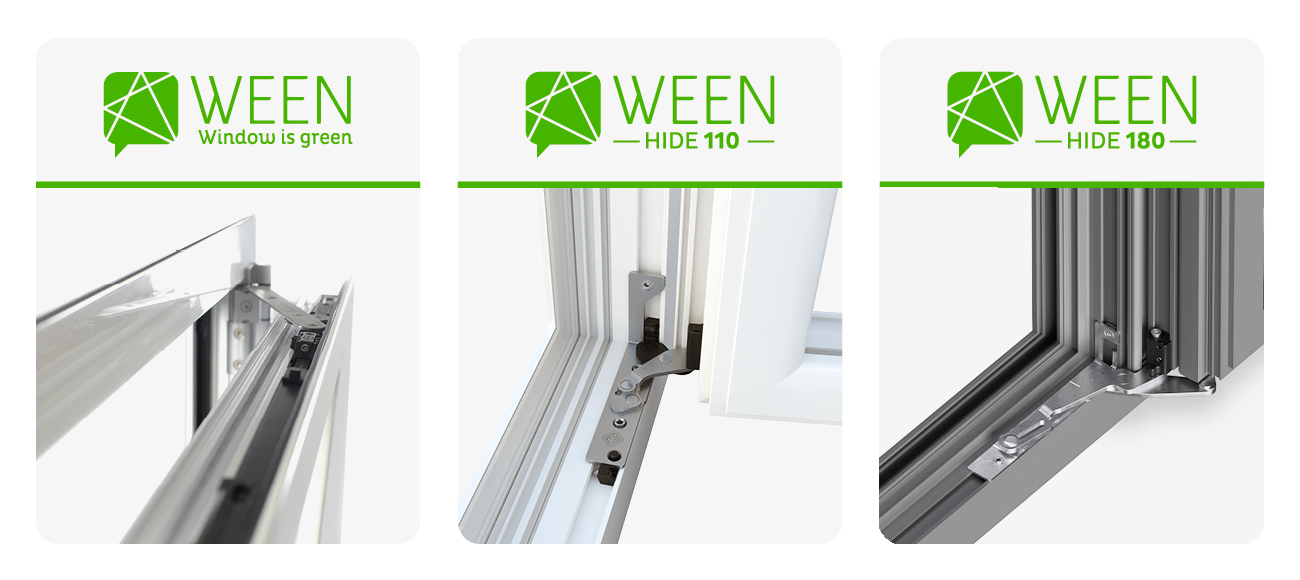

With the new version of WEEN HIDE 180, Master Italy introduces a significant upgrade to its concealed hinge solution for tilt-and-turn systems, while preserving the distinctive modularity of the WEEN programme and delivering concrete improvements in build quality, ease of installation and range extension.
WEEN HIDE 180 now includes solutions designed to optimise installation, adjustments and long-term performance:
• High-strength materials: corrosion resistance Class 5 and durability Class H2
• Even easier and faster installation
• Suitable for coplanar and overlay systems
• Load capacity up to 150 kg with 180° opening and 180 kg with 90° opening
1. OPEN/CLOSED INDICATOR TO FACILITATE CAM TIGHTENING AND HINGE FASTENING TO THE FRAME
2.SHAPED BEAK TO FACILITATE SASH INSERTION AND CORRECT HINGE PRESSURE
3.MILLIMETRIC HEIGHT ADJUSTMENT SCREW
4.SINGLE-PIECE STAINLESS STEEL CAMS FOR STABLE AND PRECISE FASTENING
5.GUIDED SELF-POSITIONING SYSTEM OF THE HINGE IN THE GROOVE
1.ADVANCED QUICK COUPLING/DECOUPLING SYSTEM FOR THE ARM
2.NEW BLOCK WITH GRUB SCREW FOR MAXIMUM PRECISION IN HORIZONTAL ADJUSTMENT
LOAD CAPACITY
Up to 150 kg with 180° opening and up to 180 kg with opening limited to 90°.
Guaranteed smooth operation on balcony doors and windows with maximum opening and load capacity.
ADJUSTMENTS
Lower hinge: horizontal adjustment -1/+2.5 mm | height +2 mm
Arm: pressure +1/-1 mm | horizontal adjustment +4 mm
ADAPTABILITY
The system is now also adaptable to internal coplanar systems, thanks to the new hinge versions, as well as to European groove aluminium systems with overlay profile.
DURABILITY
The new WEEN HIDE 180 features certified C5 corrosion resistance, H2 durability and high load capacity, thanks to structural components in AISI 304 stainless steel and high-performance total black galvanisation.
Discover the new Ween Hide 180
The introduction of a modular and comprehensive range, the increase in load-bearing capacity, the simple and intuitive assembly, and its utter “green” character make Ween the solution to the main requirements of today’s window and door hardware and design markets, which have to respond to the ever-increasing demand for very large glass surfaces and high energy performance.
The name Ween combines the two words Windows and Green in a single product concept, because Master continues its green commitment by signing a voluntary agreement with the Ministry of Ecological Transition, in which it undertakes, as the first company in the window and door hardware sector, to define a methodology for calculating CO2 emissions with the aim to devise and implement measures for improvement and reduction thereof in the manufacturing process of its components.
